Li po 3.7V 10000mAh

Name: Li po 3.7V 10000mAh
Brand: SmartBatteryStore
Price: 535.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

Want it delivered by

Available:

Only 10 items in stock

10 items in stock

In stock

Pre-order

Out of stock

Rs. 535.00

Description
Reviews

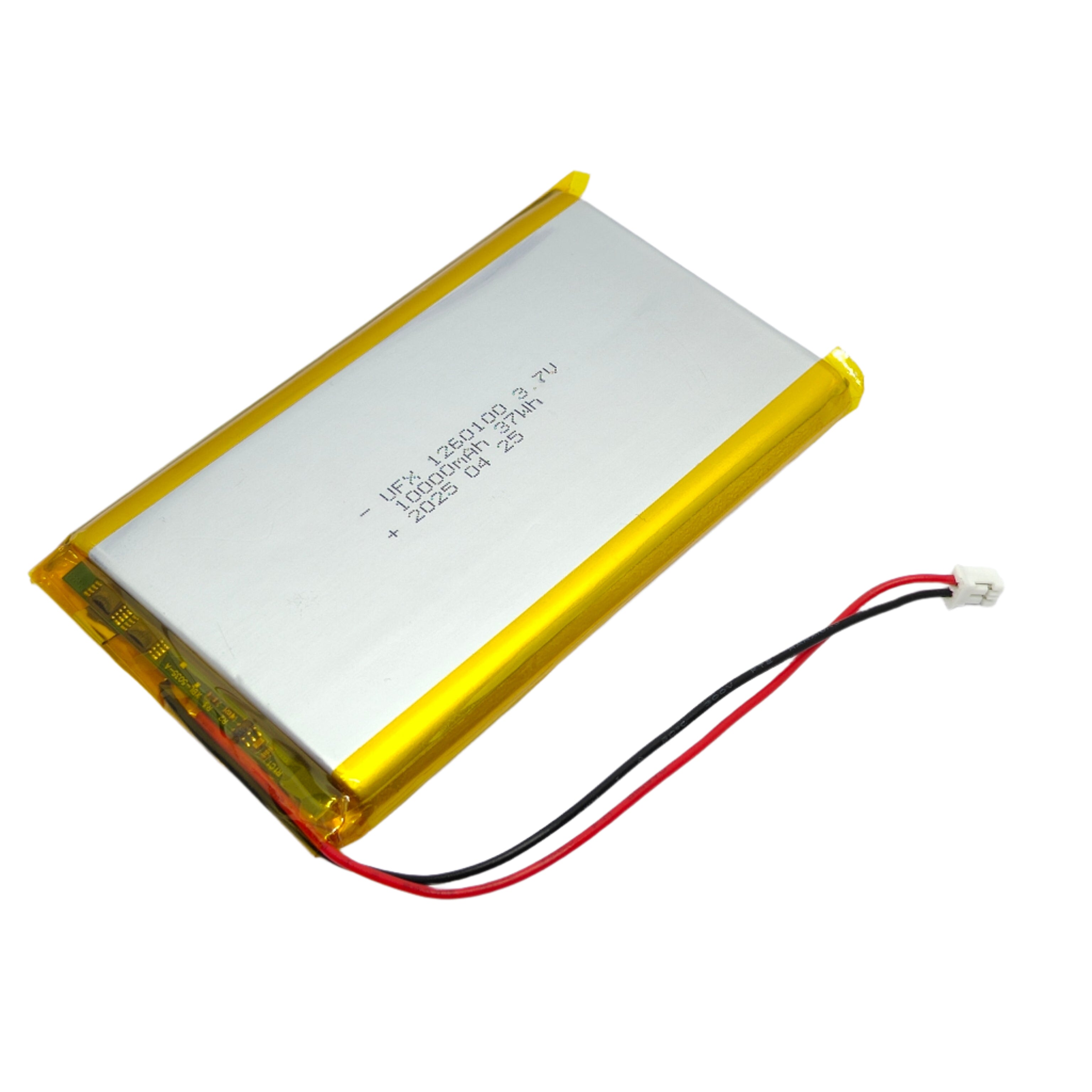

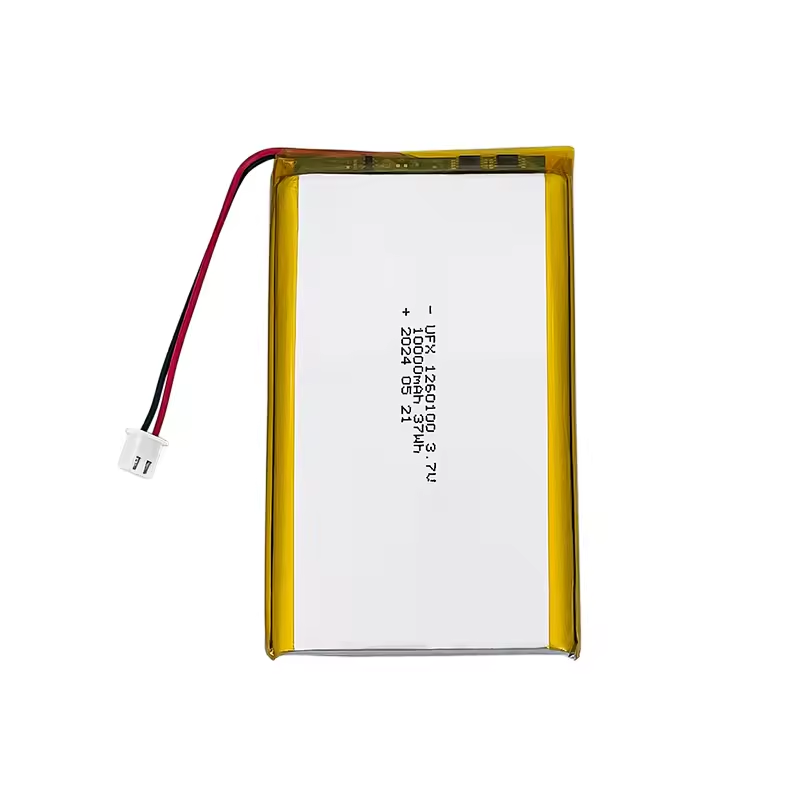

UFX 1260100- 3.7V 10000mAh Rechargeable Li Po Battery. This Standard UFX 1260100 3.7 V Rechargeable 10000mAh Li Po Battery Cell is a single tiny cell with a 10000mAh capacity. This Li Po Battery battery is very convenient to install in your project where higher current needed with space constraint. UFX 1260100 - 3.7V 10000mAh Rechargeable Li Po Battery is a source of power for various portable devices including flashlights, hobby transmitters, and receivers, etc

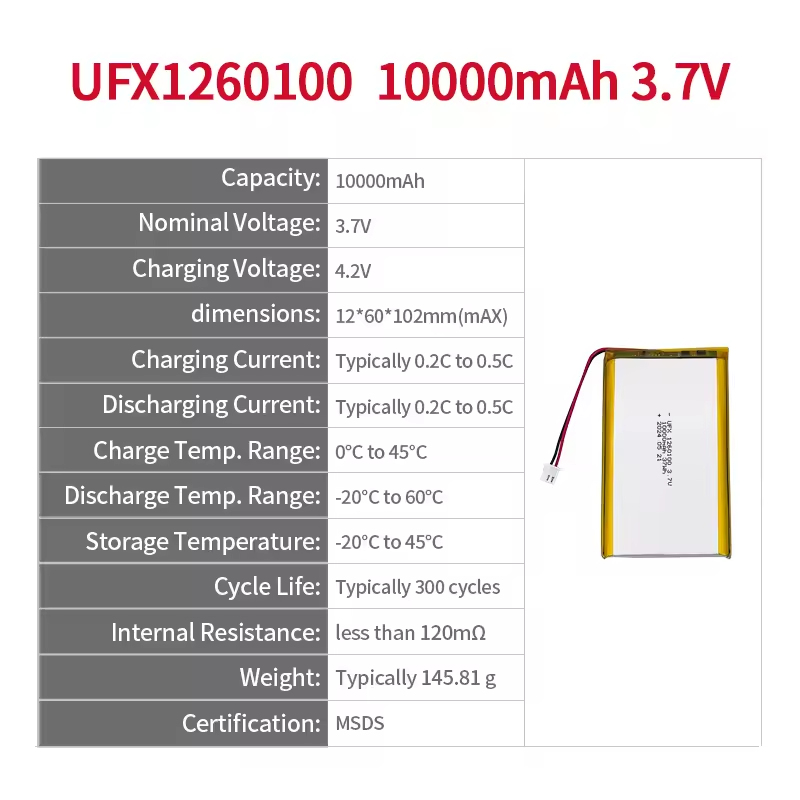

Battery Specification:

Mode No.	UFX 1260100

Electrical Characteristics
Rated Capacity	10000mAh
Nominal Voltage	3.7 V
Resistance/Initial Impedance	≤ 150mΩ
Cycle Life	>300 times


Charging & Discharge Characteristic
Standard Charge Current	2000mA (0.2C)
Max Continuos Charge Current	3000mA (0.3C)
Standard Discharge Current	2000mA (0.2C)
Max Continuos Discharge Current	3000mA (0.3C)

PCM Specification
Over-charge Protection Voltage	4.28V
Over-discharge Protection Voltage	2.4V
Over-current Protection for Discharge	6.5A
Short Circuit Protection	YES

Mechanical Characteristic
Typical Weight	≈ 165g
Dimensions	(T)12.2(w)60.3(H)103mm
Wire	100± 3 mm
Connector	JST PHR-2

Temperature Characteristic
Discharge Temperature	-20 ～ 60℃
Charge Temperature	0～ 45℃
Recommend Storage Temperature	15℃～35℃， 85% RH Max.

Li po 3.7V 10000mAh

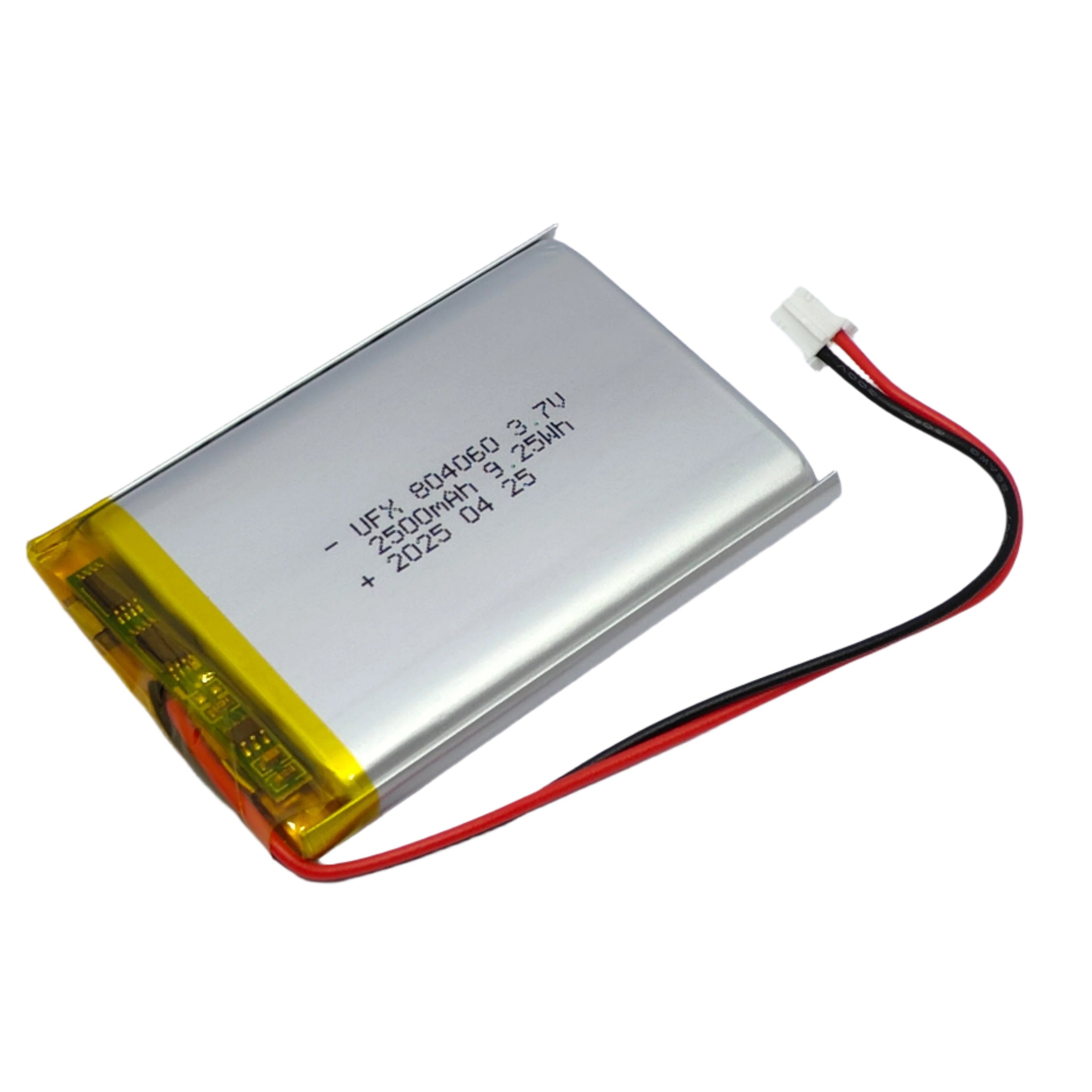

Li po 3.7V 2500mAh

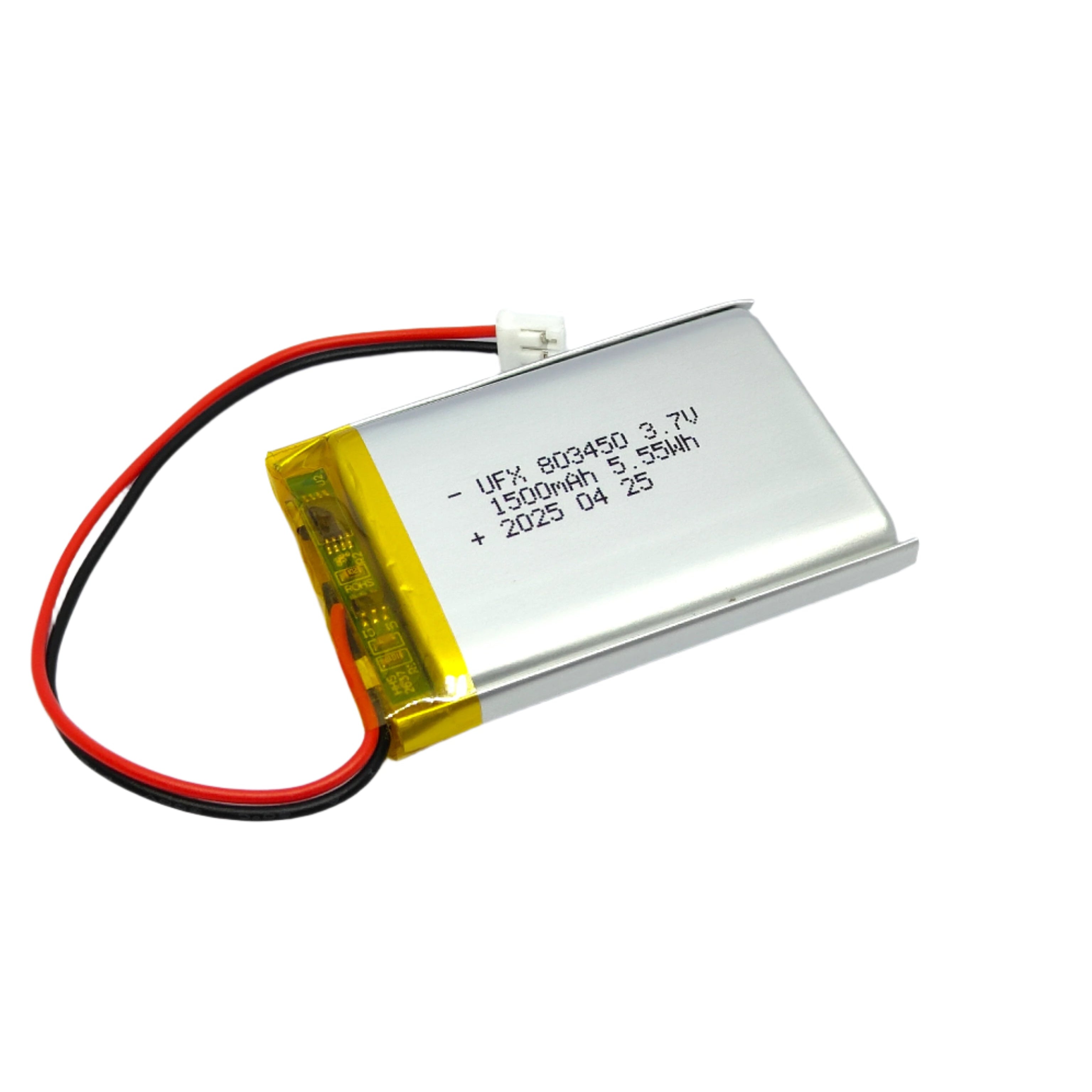

Li po 3.7V 1500mAh

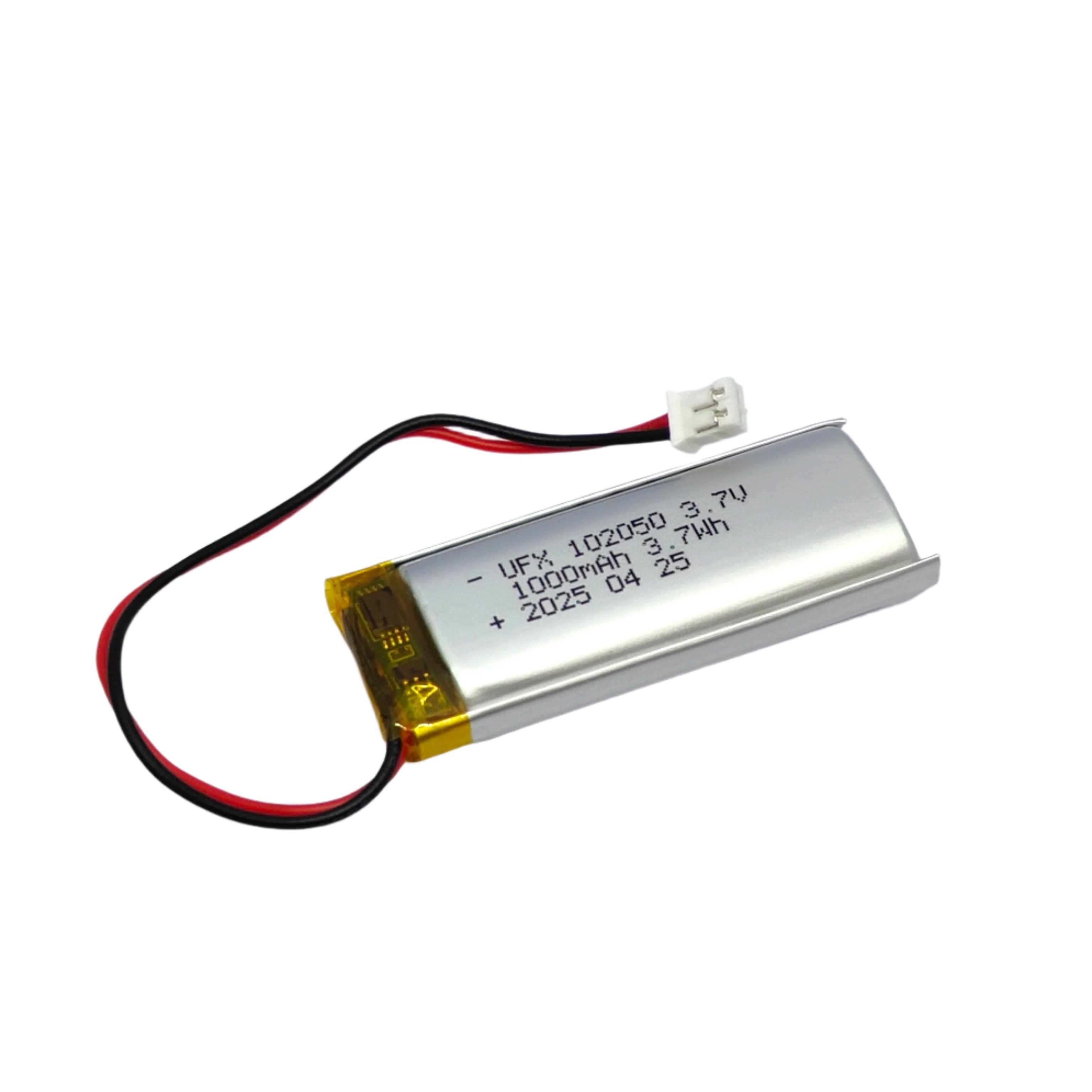

Li po 3.7V 1000mAh

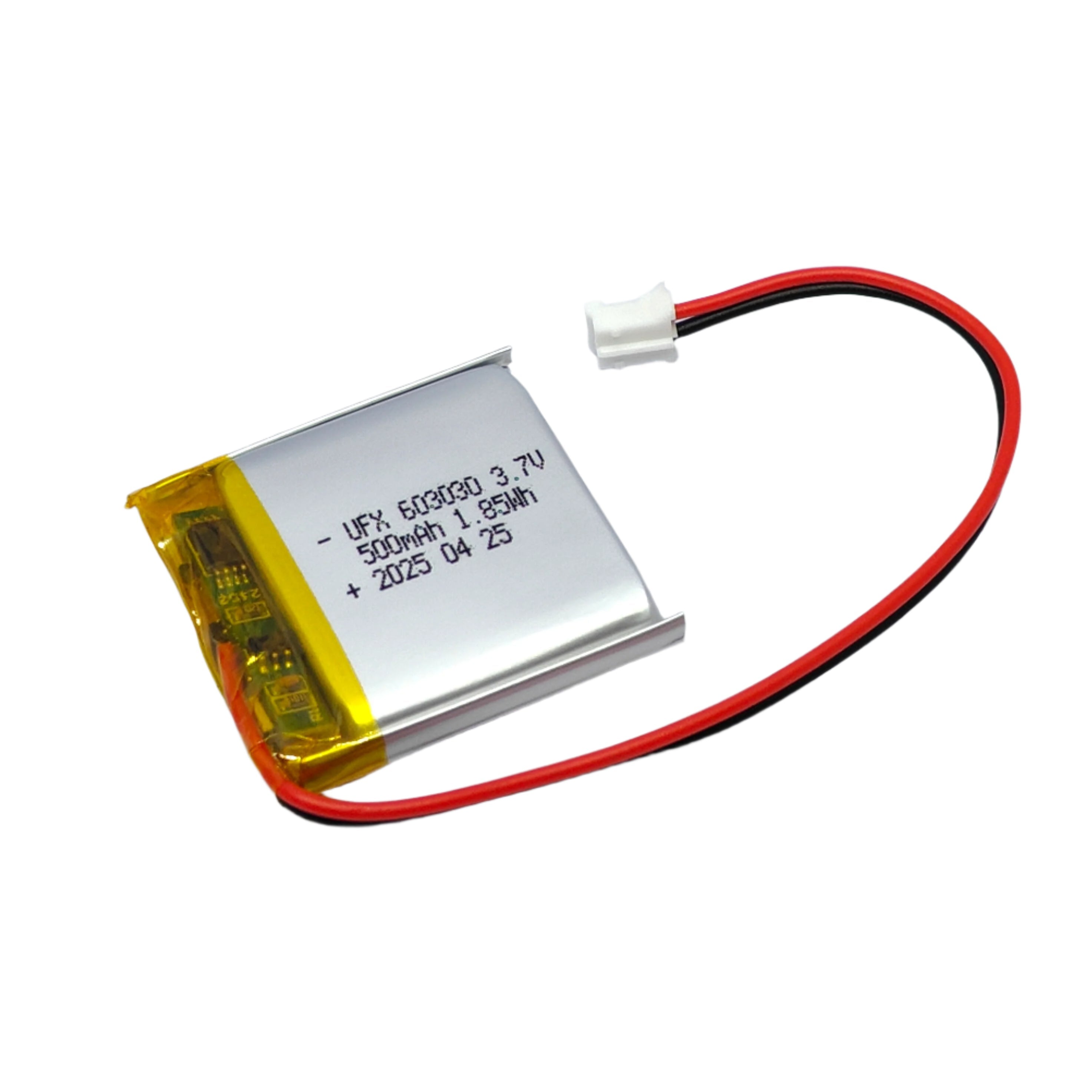

Li po 3.7V 500 mAh

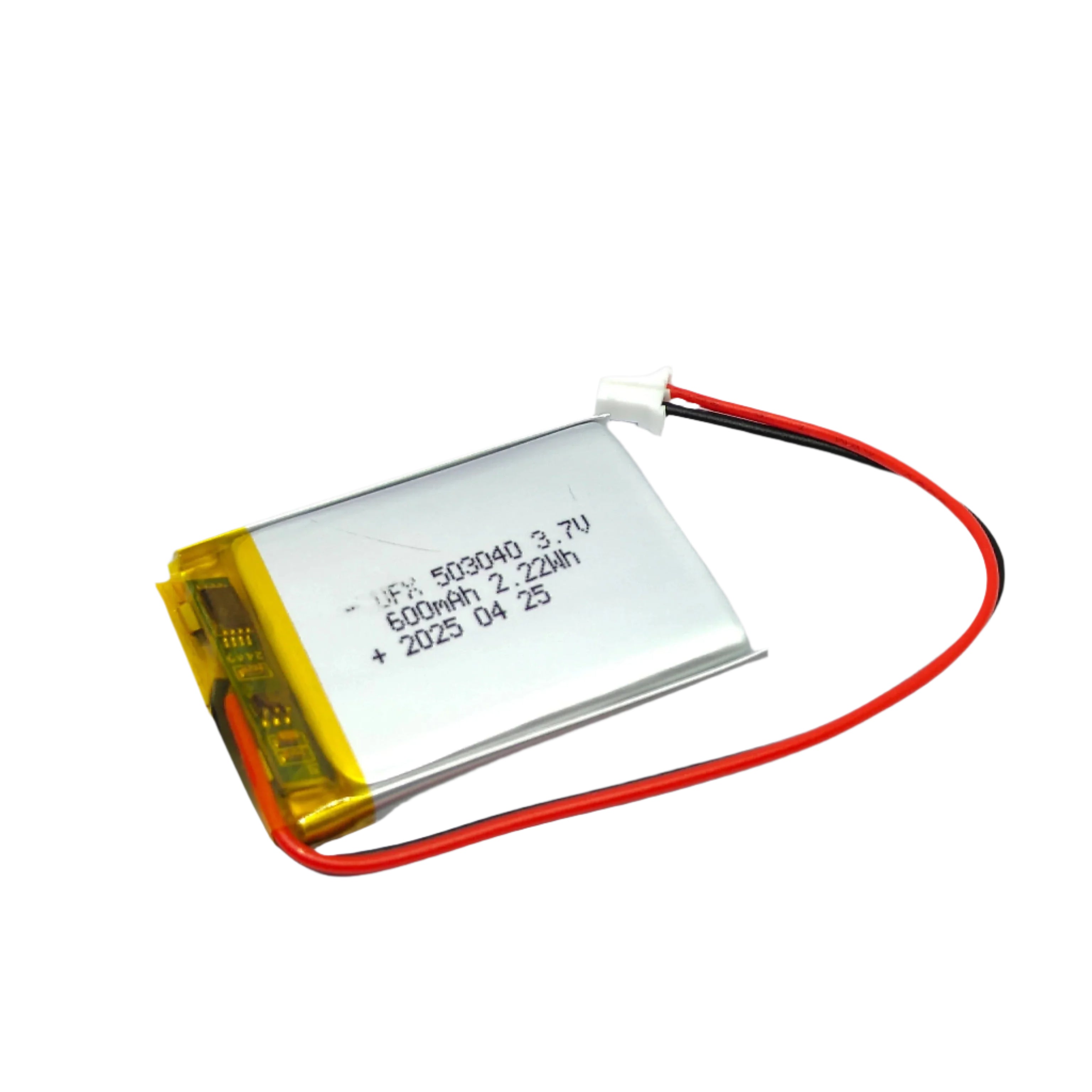

Li po 3.7V 600mAh

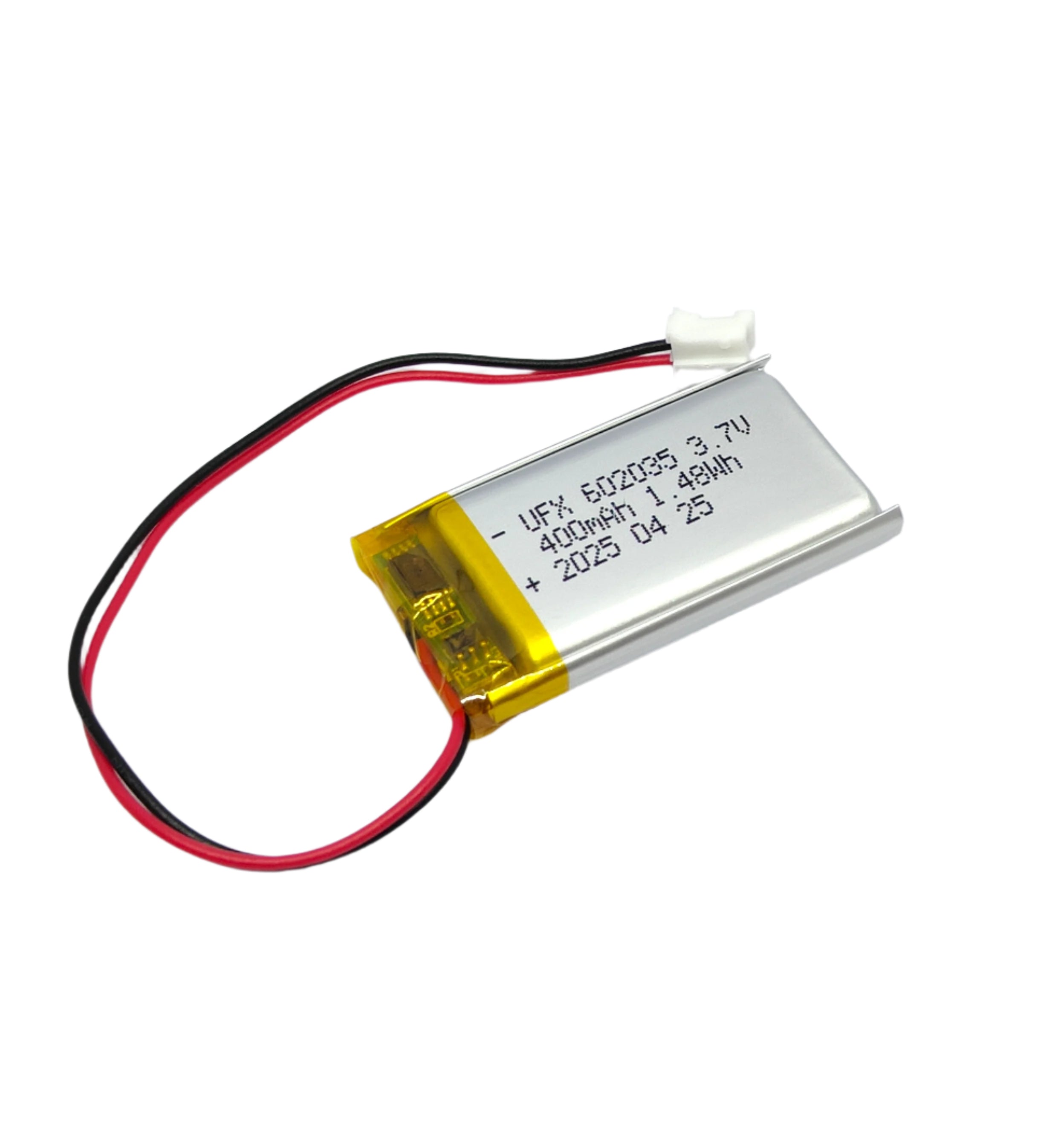

Li po 3.7V 400mAh

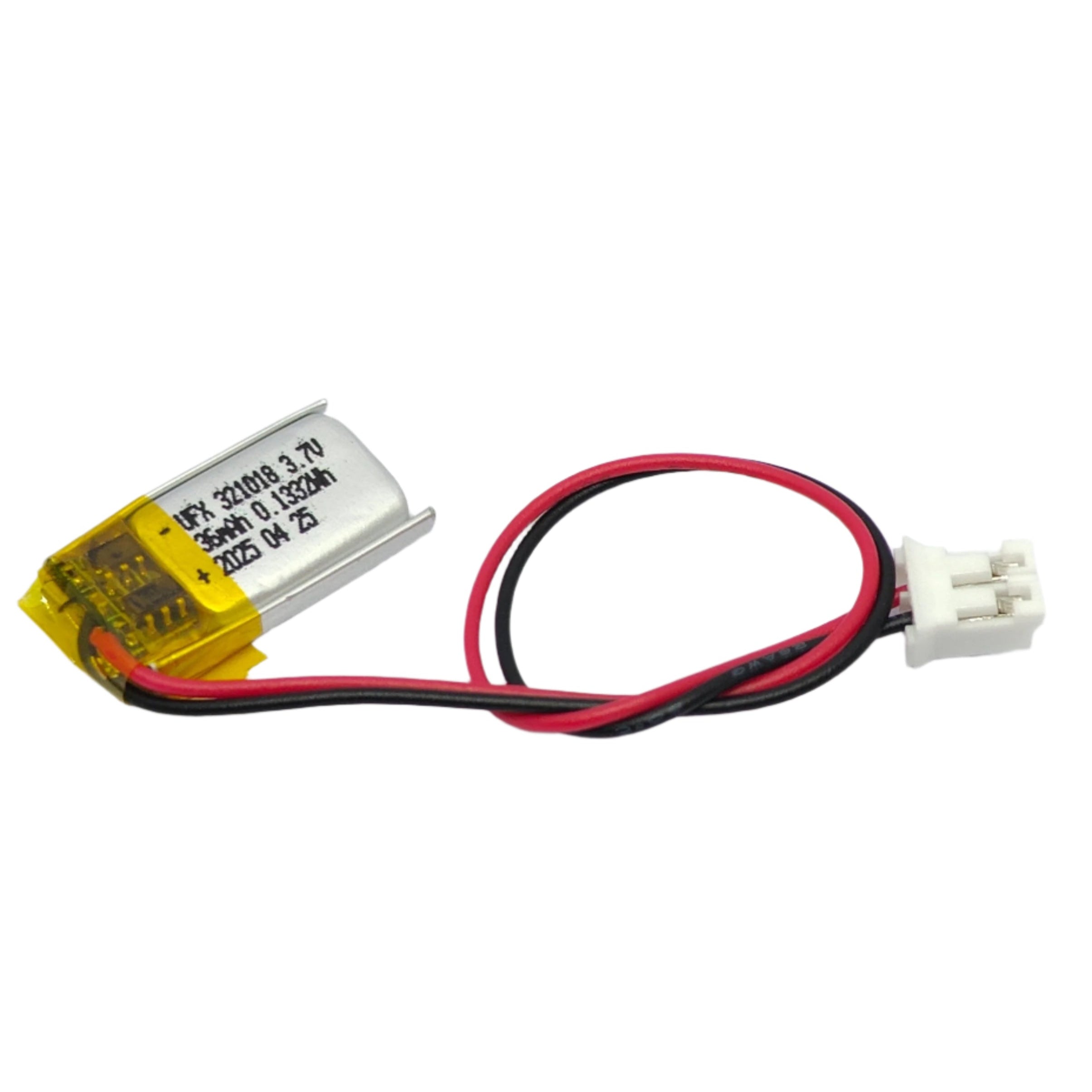

Li po 3.7V 36mAh

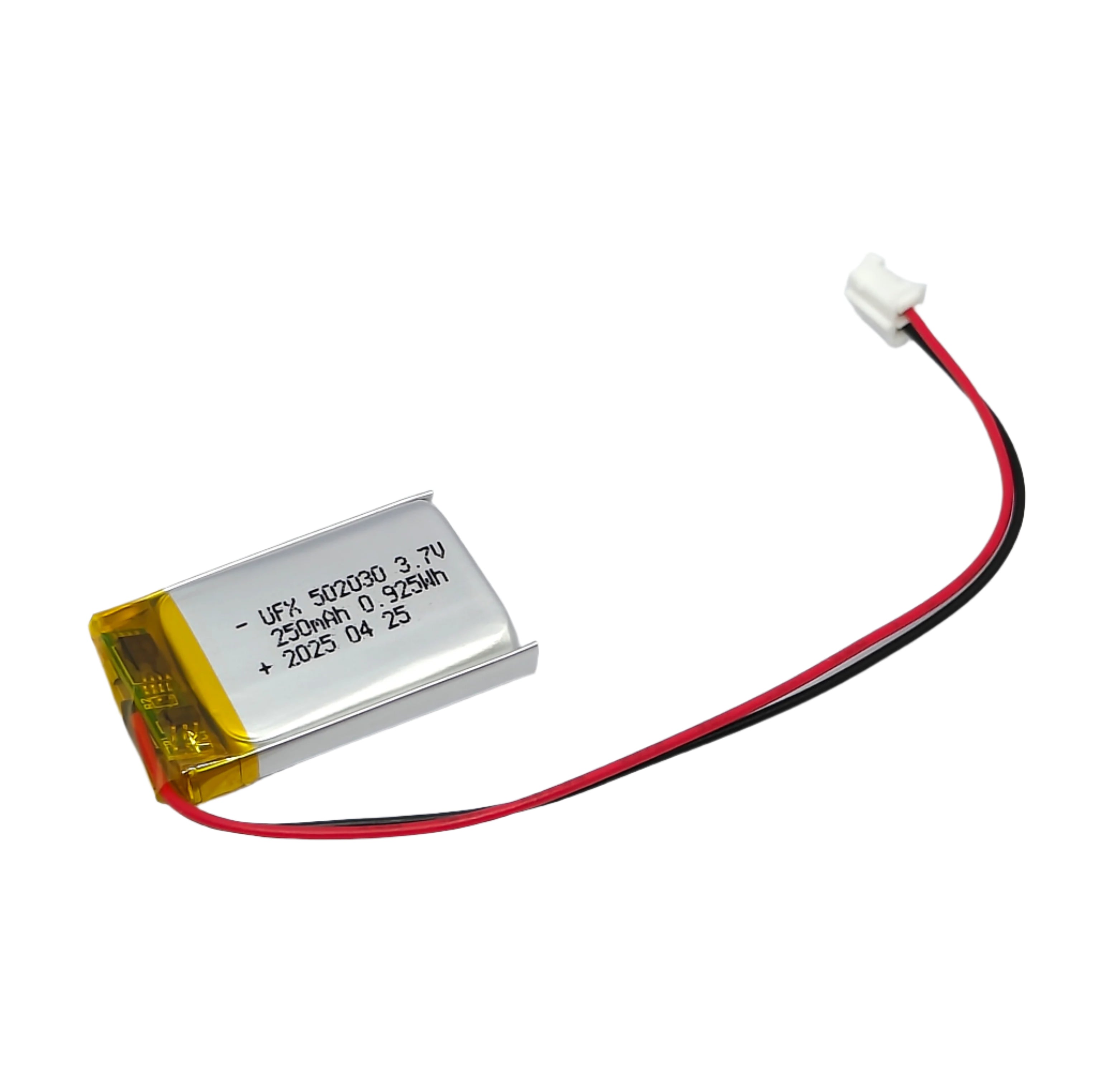

Li po 3.7V 250mAh

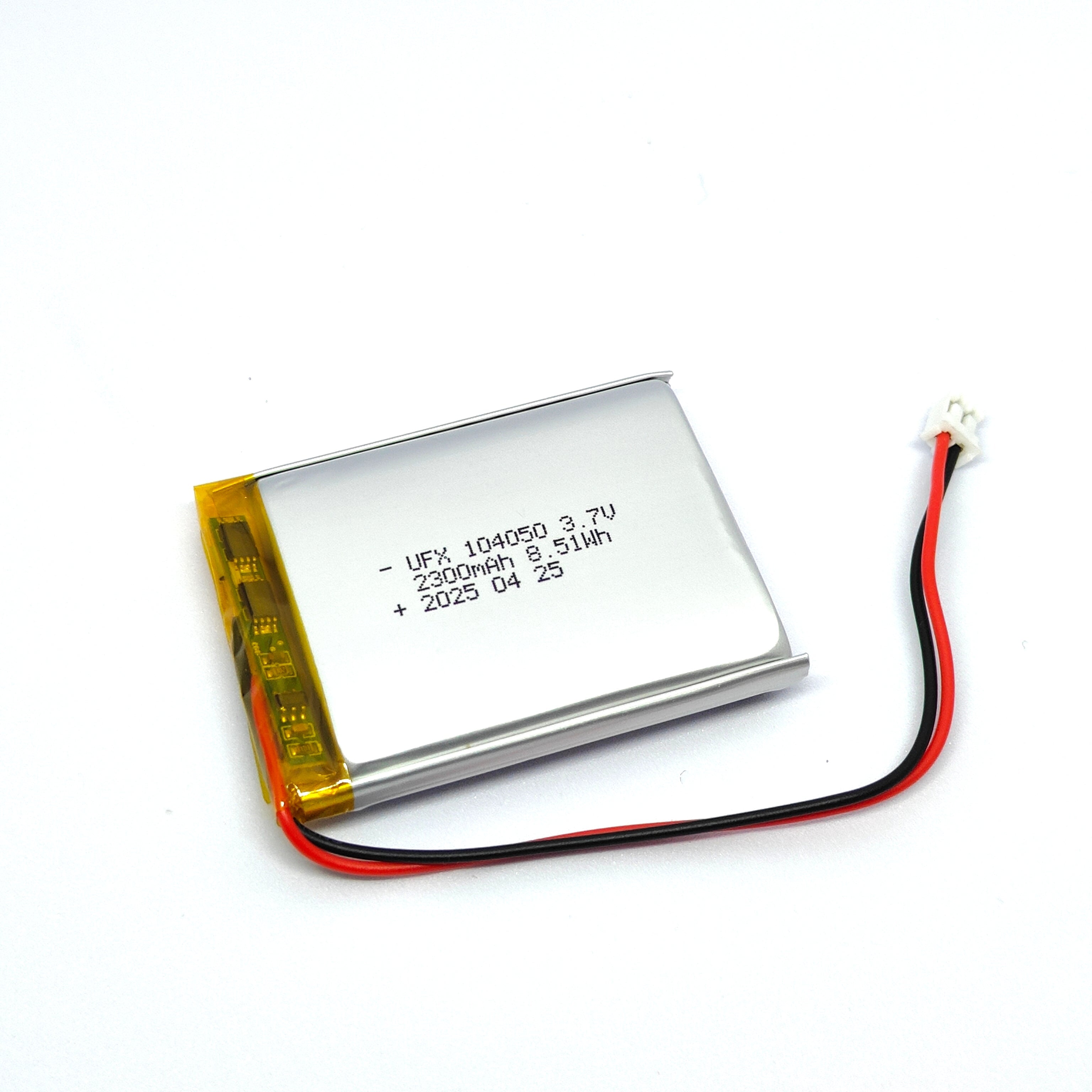

Li po 3.7V 2300mAh
