Li po - 3.7V, 60mAh

Model NoSBS 301025 -60
Capacity3.7V,60mAh
DescriptionLi Po - 3.7V, 60mAh, 1C/1C (T)3.2 x (W)10.5 x (H)27mm
Datasheet Download PDF

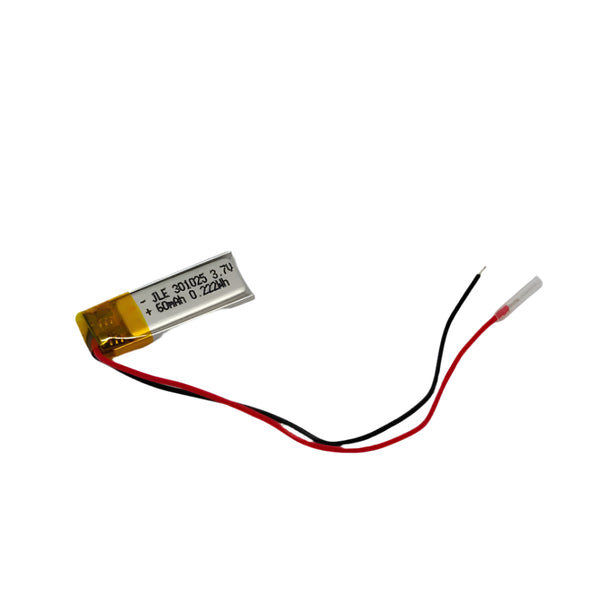

Li po - 3.7V, 60mAh image 1

In Stock: 0β€―nos

Lead Time:6 Wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 401520-100 is 3.7V 100mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
  • Hand Held devices
Specification Details
Model No SBS301025-60
Electrical Characteristics
Rated Capacity60mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 320mΞ©
Cycle Life>500 times
Charging & Discharge Characteristic
Standard Charge Current60mA (1C)
Max Continuous Charge Current1A(
Standard Discharge Current60mA (1C)
Max Continuous Discharge Current1A
PCM Specification
Over‑charge Protection Voltage4.28V
Over‑discharge Protection Voltage3V
Over‑current Protection for Discharge-
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature-10 to 60℃
Charge Temperature0-20℃(0.2C)20-45℃(0.5C)
Recommend Storage Temperature-20℃ "Β±"5℃
Weight 7gm
BATTERY
Battery Diagram
Symbol Description Dimension (mm)
T Thickness max. 3.2
W Width max. 10.5
H Height max. 27
A Wire Length 80 Β± 3
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 301025-60mAh
2 PCB 1 FR4 XBL-0704-A
3 Wire 1 Polythene and copper UL1571AWG26
4 Connector 1 JST PHR -2
πŸ“„ Download Battery Spec PDF
