OVERVIEW

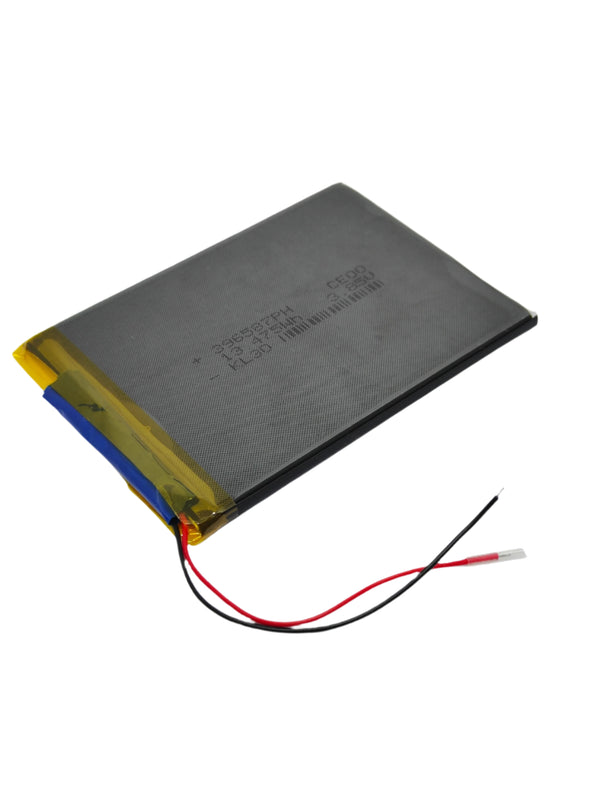

SBS 396587 -3500 is 3.7V 3500mAh Li Polymer Rechargable Battery pack with 1S1P configuration
It has Built-in PCM which protects the battery from over charging and over discharging
APPLICATIONS
- Telematics
- Medical Devices
- ROBOTS
- IOT Devices
- Wearables
- Hand Held devices
| Specification | Details |
|---|---|
| Model No | SBS- 396587 -3500 |
| Electrical Characteristics | |
| Rated Capacity | 3500mAh |
| Nominal Voltage | 3.7 V |
| Resistance / Initial Impedance | β€ 165mΞ© |
| Cycle Life | >300 times |
| Charging & Discharge Characteristic | |
| Standard Charge Current | 3500mA (1C) |
| Max Continuous Charge Current | 3(A) |
| Standard Discharge Current | 3500mA (1C) |
| Max Continuous Discharge Current | 3A |
| PCM Specification | |
| Overβcharge Protection Voltage | 4.4V |
| Overβdischarge Protection Voltage | 2.8V |
| Overβcurrent Protection for Discharge | - |
| Short Circuit Protection | YES |
| Temperature Characteristic | |
| Discharge Temperature | -10 to 60β |
| Charge Temperature | 0-20β(0.2C)20-45β(0.5C) |
| Recommend Storage Temperature | '-5~+35β |
| Weight | 47gm |
BATTERY
| Symbol | Description | Dimension (mm) |
|---|---|---|
| T | Thickness max. | 3.95 |
| W | Width max. | 65.6 |
| H | Height max. | 90 |
| A | Wire Length | 80 Β± 5 |
Battery Pack Contents
| No. | Item | Quantity | Material | Specification |
|---|---|---|---|---|
| 1 | Cell | 1 | Li-ion polymer | SBS 396587-3500 |
| 2 | PCB | 1 | XBL-0904-A | Negative tolerance |
| 3 | Wire | 2 | Polythene and copper | UL1007 26AWG |
| 4 | Connector | 1 | JST PHR -2 |
