In Stock: 49β―nos
| QTY | PRICE | EXT PRICE |
|---|
OVERVIEW

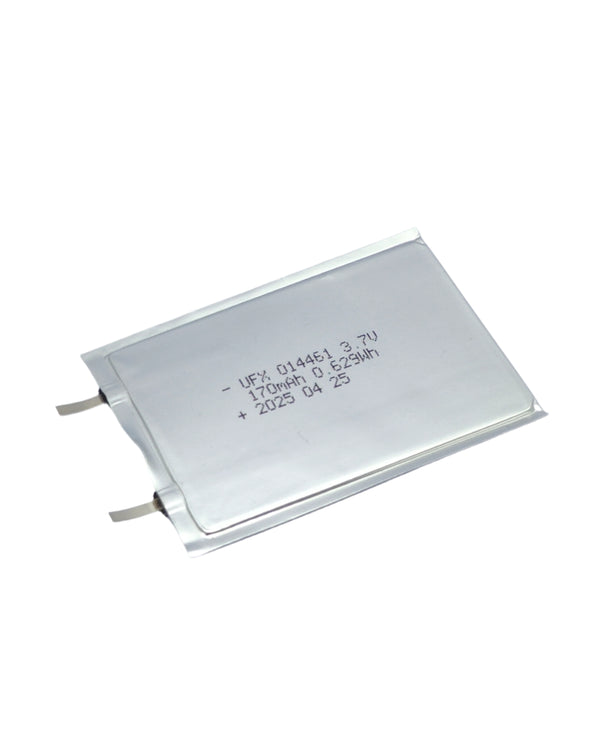

SBS 014461-170mAh is 3.7V 170mAh Li Polymer Rechargable Battery pack in a 1S1P configuration
It has Built-in PCM which protects the battery from over discharging and over charging and short Circuits.
APPLICATIONS
- Telematics
- Medical Devices
- ROBOTS
- IOT Devices
- Wearables
| Specification | Details |
|---|---|
| Model No | SBS 014461-170 |
| Electrical Characteristics | |
| Rated Capacity | SBS 014461-170mAh |
| Nominal Voltage | 3.7 V |
| Resistance / Initial Impedance | β€150mΞ© |
| Cycle Life | >>300 times |
| Self Discharge Rate | β |
| Charging & Discharge Characteristic | |
| Standard Charge Current | 34mA (0.2C) |
| Max Continuous Charge Current | 170mA |
| Standard Discharge Current | 34mA (0.2C) |
| Max Continuous Discharge Current | 170mA |
| PCM Specification | |
| Overβcharge Protection Voltage | |
| Overβdischarge Protection Voltage | |
| Overβcurrent Protection for Discharge | |
| Short Circuit Protection | |
| Temperature Characteristic | |
| Discharge Temperature | '-20 to 60β |
| Charge Temperature | 0-45β |
| Recommend Storage Temperature | '15-35βοΌ 85% RH Max. |
| Weight | 3g |
BATTERY
| Symbol | Description | Dimension (mm) |
|---|---|---|
| T | Thickness max. | 1.1 |
| W | Width max. | 44 |
| H | Height max. | 61 |
| A | Wire Length | - |
Battery Pack Contents
| No. | Item | Quantity | Material | Specification |
|---|---|---|---|---|
| 1 | Cell | 1 | Li-ion polymer | 014461-170mAh |
| 2 | PCB | |||
| 3 | Wire | |||
| 4 | Connector |
