OVERVIEW

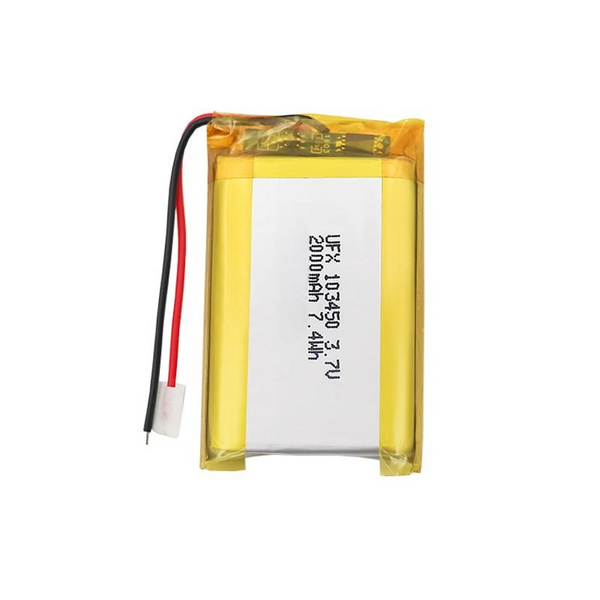

SBS 103450-2000 is 3.7V 2000mAh Li Polymer Rechargable Battery pack in a 1S1P configuration.
It has Built-in PCM which protects the battery from over discharging and over charging and short Circuits.
APPLICATIONS
- Telematics
- Medical Devices
- ROBOTS
- IOT Devices
- Wearables
| Specification | Details |
|---|---|
| Model No | SBS 102050-1000 |
| Electrical Characteristics | |
| Rated Capacity | 2000 mAh |
| Nominal Voltage | 3.7 V |
| Resistance / Initial Impedance | β€ 180 mΞ© |
| Cycle Life | >300 times |
| Self Discharge Rate | β |
| Charging & Discharge Characteristic | |
| Standard Charge Current | 400mA (0.2C) |
| Max Continuous Charge Current | 1000mA (0.5C) |
| Standard Discharge Current | 400mA (0.2C) |
| Max Continuous Discharge Current | 1500mA (0.75C) |
| PCM Specification | |
| Overβcharge Protection Voltage | 4.28 V |
| Overβdischarge Protection Voltage | 2.4V |
| Overβcurrent Protection for Discharge | 3A |
| Short Circuit Protection | YES |
| Temperature Characteristic | |
| Discharge Temperature | '-20 to 60β |
| Charge Temperature | 0-45β |
| Recommend Storage Temperature | '15-35βοΌ 85% RH Max. |
| Weight | 34gm |
BATTERY
| Symbol | Description | Dimension (mm) |
|---|---|---|
| T | Thickness max. | 10.2 |
| W | Width max. | 34.3 |
| H | Height max. | 53 |
| A | Wire Length | 100 Β± 3 |
Battery Pack Contents
| No. | Item | Quantity | Material | Specification |
|---|---|---|---|---|
| 1 | Cell | 1 | Li-ion polymer | 103450-2000mAh |
| 2 | PCB | 1 | FR4 | Pass RoHS |
| 3 | Wire | 2 | Polythene and copper | UL1007 26AWG |
| 4 | Connector | 1 | β | JST PHR-2 |
