Li Po - 3.7V, 2500mAh

Model NoSBS 804060-2500
Capacity3.7V, 2500mAh
DescriptionLi Po - 3.7V, 2500mAh, 1C/1C (T)8.2 x (W)40.3 x (H)53mm
Datasheet Download PDF

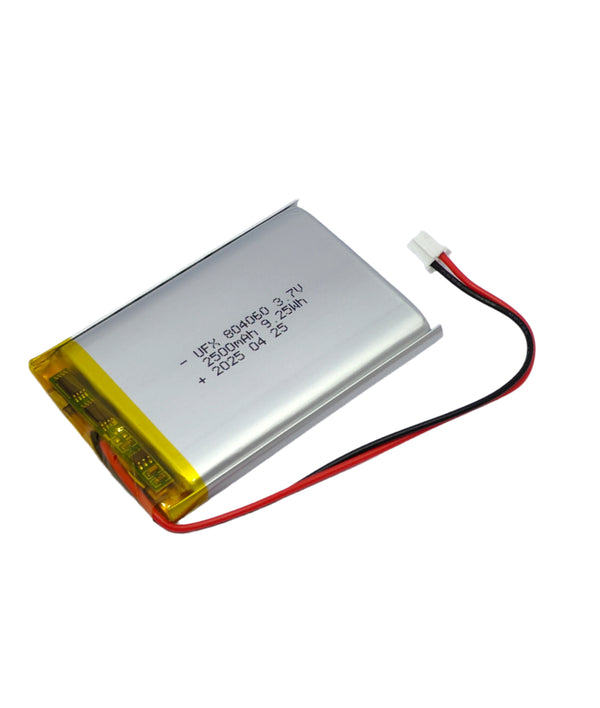

Li Po - 3.7V, 2500mAh image 1

In Stock: 28β€―nos

Lead Time:6 Wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 804060-2500 is 3.7V 2500mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
  • Hand Held devices
Specification Details
Model No SBS 804060-2500mAh
Electrical Characteristics
Rated Capacity2500mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 160mΞ©
Cycle Life>>300 times
Self Discharge Rate–
Charging & Discharge Characteristic
Standard Charge Current500mA (0.2C)
Max Continuous Charge Current1250mA (0.5C)
Standard Discharge Current500mA (0.2C)
Max Continuous Discharge Current1250mA (0.5C)
PCM Specification
Over‑charge Protection Voltage4.28 V
Over‑discharge Protection Voltage2.4V
Over‑current Protection for Discharge6.5A
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature'-20 to 60℃
Charge Temperature0-45℃
Recommend Storage Temperature'15-35β„ƒοΌŒ 85% RH Max.
Weight 41gm
BATTERY
Battery Diagram
Symbol Description Dimension (mm)
T Thickness max. 8.2
W Width max. 40.3
H Height max. 53
A Wire Length 100 Β± 3
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 804060-2500mAh
2 PCB 1 FR4 Pass RoHS
3 Wire 2 Polythene and copper UL1007 26AWG
4 Connector 1 JST PHR-2
πŸ“„ Download Battery Spec PDF
