Li Po - 3.7V, 250mAh

Model NoSBS 502030-250
Capacity3.7V, 250mAh
DescriptionLi Po - 3.7V, 250mAh, 1C/1C (T)5.2x (W)20.3 x (H)32.5mm
Datasheet Download PDF

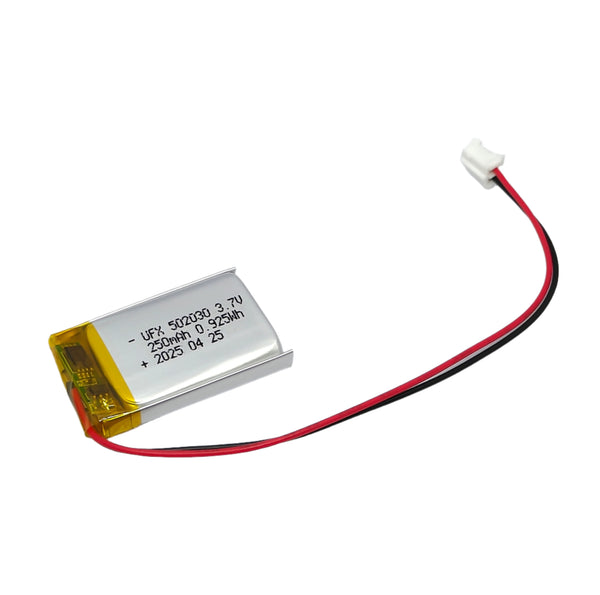

Li Po - 3.7V, 250mAh image 1

In Stock: 50β€―nos

Lead Time:6 Wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 502030-250 is 3.7V 250mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
  • Hand Held devices
Specification Details
Model No SBS502030-250
Electrical Characteristics
Rated Capacity250mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 240mΞ©
Cycle Life>300 times
Charging & Discharge Characteristic
Standard Charge Current50mA (0.2C)
Max Continuous Charge Current250mA (1C)
Standard Discharge Current50mA (0.2C)
Max Continuous Discharge Current250mA (1C)
PCM Specification
Over‑charge Protection Voltage4.28V
Over‑discharge Protection Voltage2.4V
Over‑current Protection for Discharge3A
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature-20 to +60℃
Charge Temperature0-45℃
Recommend Storage Temperature15-35℃, 85% RH Max.
Weight 5.5gm
BATTERY
Battery Diagram
Symbol Description Dimension (mm)
T Thickness max. 5.2
W Width max. 5.2
H Height max. 32.5
A Wire Length 100 Β± 3
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 502030-250mAh
2 PCB 1 FR4 Pass RoHS
3 Wire 2 Polythene and copper UL1571 26AWG
4 Connector 1 JST PHR-2
πŸ“„ Download Battery Spec PDF
