Li Po - 3.7V, 600mAh

Model NoSBS 503040 -40
Capacity3.7V, 600mAh
DescriptionLi Po - 3.7V, 600mAh, 1C/1C (T)5.2 x (W)30.3 x (H)43mm
Datasheet Download PDF

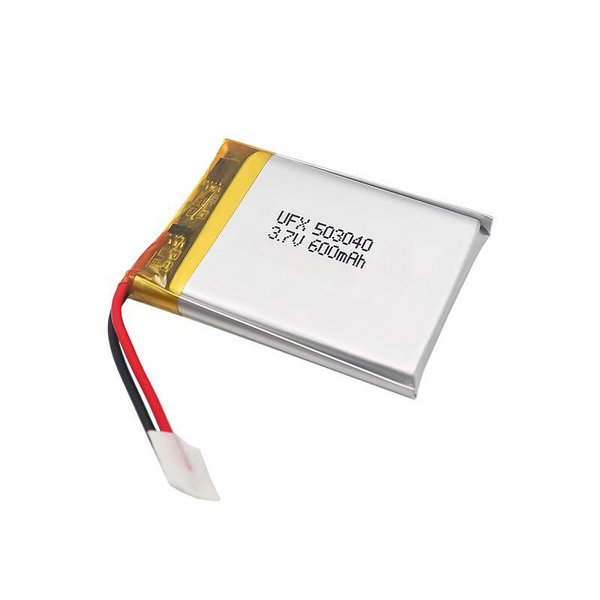

Li Po - 3.7V, 600mAh image 1

In Stock: 50β€―nos

Lead Time:6wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 503040-600 is 3.7V 600mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
600 mA
Specification Details
Model No SBS 503040- 600
Electrical Characteristics
Rated Capacity600mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 180mΞ©
Cycle Life>>300 times
Self Discharge Rate–
Charging & Discharge Characteristic
Standard Charge Current120mA(0.2C)
Max Continuous Charge Current600mA (1C)
Standard Discharge Current120mA (0.2C)
Max Continuous Discharge Current
PCM Specification
Over‑charge Protection Voltage4.28V
Over‑discharge Protection Voltage2.4V
Over‑current Protection for Discharge3A
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature'-20 to 60℃
Charge Temperature0-45℃
Recommend Storage Temperature'15-35β„ƒοΌŒ 85% RH Max.
Weight 12gm
BATTERY
Battery Diagram
Symbol Description Dimension (mm)
T Thickness max. 5.2
W Width max. 30.3
H Height max. 43
A Wire Length 100 Β± 3
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 502030-250mAh
2 PCB 1 FR4 Pass RoHS
3 Wire 2 Polythene and copper UL1007 26AWG
4 Connector 1 JST PHR-2
πŸ“„ Download Battery Spec PDF
