Li Po - 3.7V, 700mAh

Model NoSBS 404040-700
Capacity3.7V, 700mAh
DescriptionLi Po - 3.7V, 700mAh (T)4.2 x (W)40.5 x (H)42.5mm
Datasheet Download PDF

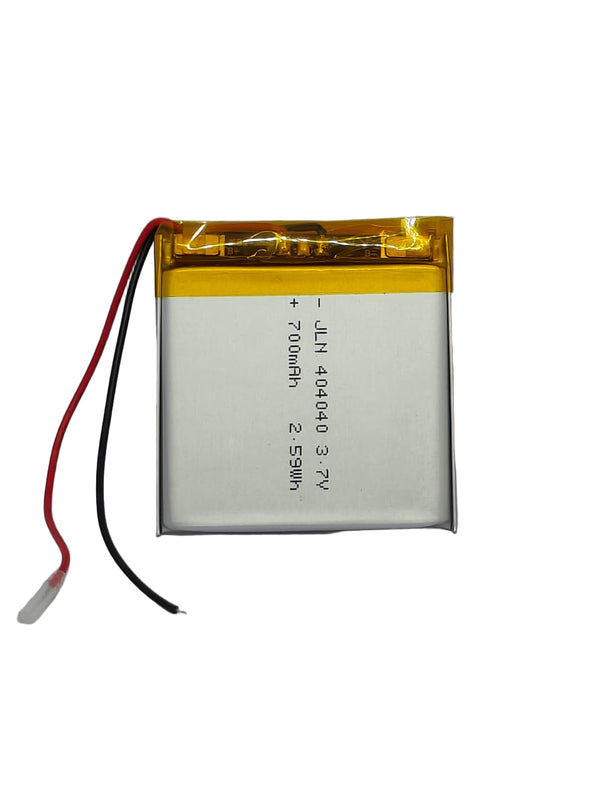

Li Po - 3.7V, 700mAh image 1

In Stock: 0β€―nos

Lead Time:6 wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 404040-700 is 3.7V 700mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
Specification Details
Model No SBS 404040-700
Electrical Characteristics
Rated Capacity700mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 260mΞ©
Cycle Life>>500 times
Self Discharge Rate–
Charging & Discharge Characteristic
Standard Charge Current140mA (0.2C)
Max Continuous Charge Current700mA (1C)
Standard Discharge Current140mA (0.2C)
Max Continuous Discharge Current700mA (1C)
PCM Specification
Over‑charge Protection Voltage4.28 V
Over‑discharge Protection Voltage3V
Over‑current Protection for Discharge3A
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature'-10 to 60℃
Charge Temperature0~20℃(0.2C)20~45℃(0.5C)
Recommend Storage Temperature'5-35℃
Weight 15gm
BATTERY
Symbol Description Dimension (mm)
T Thickness max. 4.2
W Width max. 42.5
H Height max. 42.5
A Wire Length 80 Β± 5
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 404040-700mAh
2 PCB 1 FR4 XBL-2835-A
3 Wire 2 Polythene and copper UL1571AWG28
4 Connector 1 JST PHR-2
πŸ“„ Download Battery Spec PDF
