Li Po - 3.7V, 900mAh

Model NoSBS 603443-900
Capacity3.7V, 900mAh
DescriptionLi Po - 3.7V, 900mAh (T)6.2 x (W)34.5 x (H)45.5mm
Datasheet Download PDF

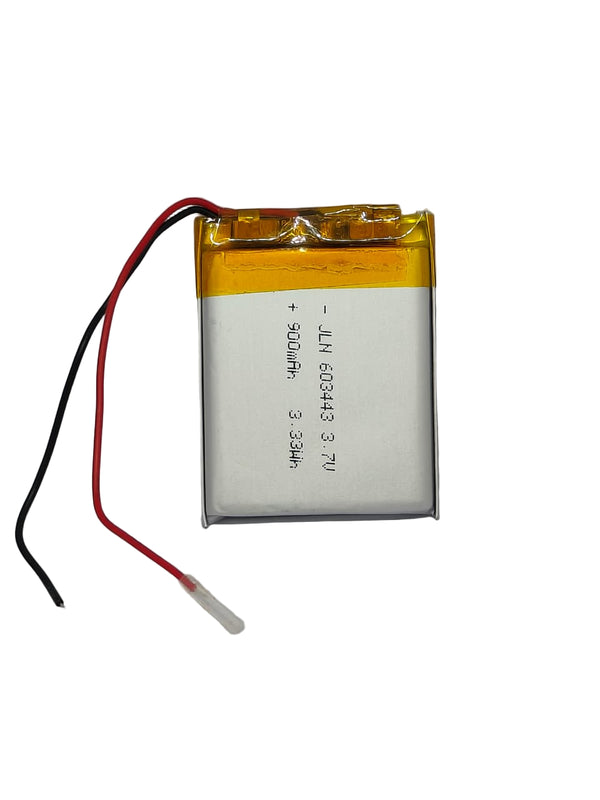

Li Po - 3.7V, 900mAh image 1

In Stock: 0β€―nos

Lead Time:6 wks
Minimum:5
Multiple:1
QTY PRICE EXT PRICE

OVERVIEW

SBS 603443-900 mAh is 3.7V 900mAh Li Polymer Rechargable Battery pack with 1S1P configuration

It has Built-in PCM which protects the battery from over charging and over discharging

APPLICATIONS

  • Telematics
  • Medical Devices
  • ROBOTS
  • IOT Devices
  • Wearables
Specification Details
Model No SBS 603443-900
Electrical Characteristics
Rated Capacity900mAh
Nominal Voltage3.7 V
Resistance / Initial Impedance≀ 260mΞ©
Cycle Life>500 times
Self Discharge Rate–
Charging & Discharge Characteristic
Standard Charge Current180mA (0.2C)
Max Continuous Charge Current900mA (1C)
Standard Discharge Current180mA (0.2C)
Max Continuous Discharge Current900mA (1C)
PCM Specification
Over‑charge Protection Voltage4.28 V
Over‑discharge Protection Voltage3V
Over‑current Protection for Discharge3A
Short Circuit ProtectionYES
Temperature Characteristic
Discharge Temperature-10~60℃
Charge Temperature0~20℃(0.2C)20~45℃(0.5C)
Recommend Storage Temperature-5～+35℃
Weight -
BATTERY
Symbol Description Dimension (mm)
T Thickness max. 6.2
W Width max. 34.5
H Height max. 45.5
A Wire Length 80 Β± 5mm
Battery Pack Contents
No. Item Quantity Material Specification
1 Cell 1 Li-ion polymer 603443-900mAh
2 PCB 1 FR4 XBL-2835-A
3 Wire 1 Polythene and copper UL1571AWG28
4 Connector 1 - JST PHR-2
πŸ“„ Download Battery Spec PDF
